For outputs of 250 to 750 Kg/hr

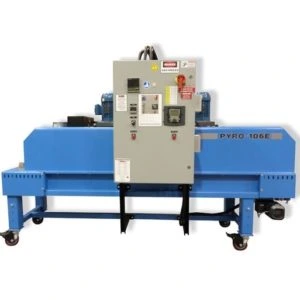

Depending on your component size and volumes you can select one of the small electric continuous furnaces at the table in the right. These tempering ovens are robust in construction, design specifically for efficiency and productivity. The PS series of small electric continuous ovens work at high speeds and provide excellent process time cycles and significant heat loss control, ensuring maximum outputs for your components. These ovens can be used for processes up to 540°C for applications like tempering ovens for springs, stress-relieving ovens for cv joints etc.”
Features & Specifications
| Model | PS-103E | PS-106E | PS-128E | PS-168E | PS-208E |
|---|---|---|---|---|---|
| Chamber size (WxLxH) | 255 x 1830 x 100 | 255 x 1830 x 100 | 300 x 2440 x 100 | 405 x 2440 x 100 | 255 x 1830 x 100 |
| Overall size (WxL) | 710 x 2645 | 710 x 2645 | 760 x 3255 | 810 x 3255 | 710 x 2645 |
| Capacity/hour | 310°C, 410kg
370°C, 335kg 420°C, 290kg |
310°C, 410kg
370°C, 335kg 420°C, 290kg |
310°C, 650kg370°C, 510kg
420°C, 425kg |
310°C, 725kg
370°C, 565kg 420°C, 465kg |
310°C, 410kg
370°C, 335kg 420°C, 290kg |
| Power | 24 KW | 24 KW | 39 KW | 45 KW | 45 KW |
*Higher output available
Special Applications – Tempering of Induction Hardened Parts, Tempering of Crankshafts
Applications
Stress Relieving
High-speed stress relieving started with torsion springs in the 1990s. The first ovens yielded 30% rejected parts. After series of time and temperature tests, the processing temperature was increased by 100°C, far above the temperatures then recommended. Cycle time was thus reduced from 60 minutes to just 3 minutes for a CrSi 6mm wire. Best of all, this new in-line process yielded no rejects. This process efficiency was consistently proven and reproduced on many other types of springs since then.
Tempering
The leaf spring market has presented several opportunities for conversion to lean tempering. In addition to the significant speed advantages (40 minutes as compared to the conventional 2 hours) our ovens deliver further operating-cost advantages. While conventional ovens require a 3 million BTU burner system, a Pyro oven with the same output only requires a 1.5 million BTU burner system. Moreover, the shorter oven length enables the use of air cooling rather than the use of water.
Annealing
More about Small Electric Continuous Furnace
Industries Served
- Springs
- Suspension springs
- Torsion springs
- Wire forms
- Valve springs
- CV Joints
- Leaf Springs
- Shafts
- Torsion tubes
- Crankshafts
- Induction hardened parts
