For Outputs of 5000 to 20,000 Kg/hr

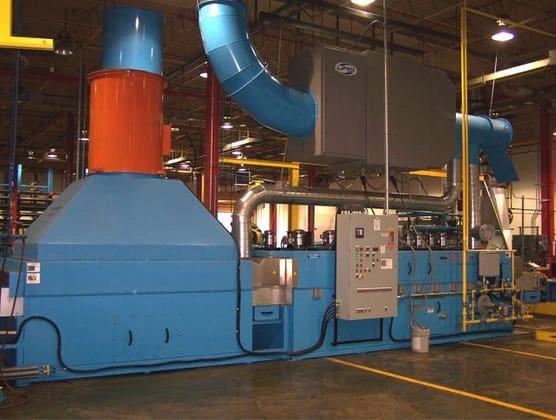

Large gas-fired ovens are capable of very high outputs, versatile in operations and custom configurable for your requirements. These deliver high capacity in highly efficient operations, for continuous high yield production. Special conveying and material handling mechanisms are designed as per the component loading to ensure the best yield in a compact footprint.
Features & Specifications
| Model | P-5015G | P-7215G | P-1002G |
|---|---|---|---|
| Chamber size (WxLxH) | 1270 x 4575 x 255 | 1830 x 4575 x 255 | 2540 x 6100 x 255 |
| Overall size (WxL) | 2645 x 5995 | 3355 x 5995 | 4065 x 7620 |
| Capacity/hour | 310°C, 10650kg | 370°C, 8215kg | 420°C, 6745kg | 310°C, 13080kg | 370°C, 10140kg | 420°C, 8365kg | 310°C, 15480kg | 370°C, 12050kg | 420°C, 9980kg |
| Power | 440 KW | 440 KW | 730KW |
*Higher output available
Special Applications – Tempering of Induction Hardened Parts, Tempering of Crankshafts.
More about Large Gas Fired Continuous Furnace
Applications
- Annealing
- Stree Relieving
- Tempering
Industries Served
- Springs
- Suspension springs
- Torsion springs
- Wire forms
- Valve springs
- CV Joints
- Leaf Springs
- Shafts
- Torsion tubes
- Crankshafts
- Induction hardened parts
